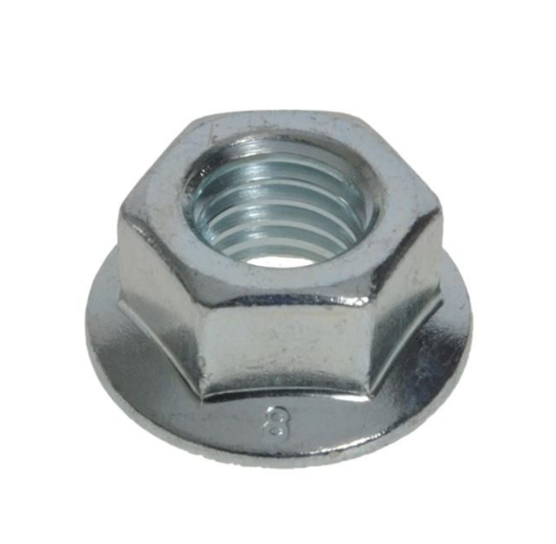

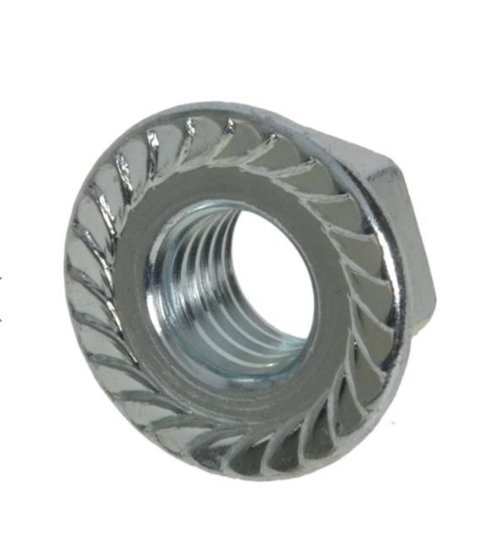

M5 x 0.80p Metric Coarse Zinc Class 8 Hex Flange Serrated Nuts High Tensile DIN 6923 ( Box of 1000)
M5 x 0.80p Metric Coarse Zinc Class 8 Hex Flange Serrated Nuts High Tensile DIN 6923 ( Box of 1000)
Roll over image to zoom in Click on image to zoom
M5 x 0.80p Metric Coarse Zinc Class 8 Hex Flange Serrated Nuts High Tensile DIN 6923 ( Box of 1000)M5 x 0.80p Metric Coarse Zinc Class 8 Hex Flange Serrated Nuts High Tensile DIN 6923 ( Box of 1000)

M5 x 0.80p Metric Coarse Zinc Class 8 Hex Flange Serrated Nuts High Tensile DIN 6923 ( Box of 1000)

HobsonSKU: 41FL5-D74L-PHS
Price:
$50.00 AUD

Estimate shipping

Pickup available at 8/7 Daisy Street

Usually ready in 24 hours

Description
Brochure
Technical Data Sheet
Warranty & Return
  • System of MeasurementMetric
  • ProductFlange Serrated Nut
  • SizeM5 (5mm)
  • Size & Thread PitchM5 x 0.80p Coarse
  • Thread Pitch0.80mm
  • Thread DirectionRight Hand
  • Thread TypeMetric - Coarse
  • Corrosion Protection LevelModerate
  • Class GradeHigh Tensile Class 8
  • MaterialCarbon Steel
  • FinishZinc Plated
  • Across Flats (af)7.78 - 8.00mm
  • Across Corners (ac)8.79 - 9.24mm
  • Flange Diameter (f)11.50 - 11.90mm
  • Nut Height Overall (b)4.70 - 5.00mm
  • Spanner Size (af)8mm
  • Serrations Under HeadYes
  • Closest size in imperial3/16"
  • Standard Made ToDIN6923
  • BrandHitech Fasteners
  • Alternative BrandsHoldite Industries
