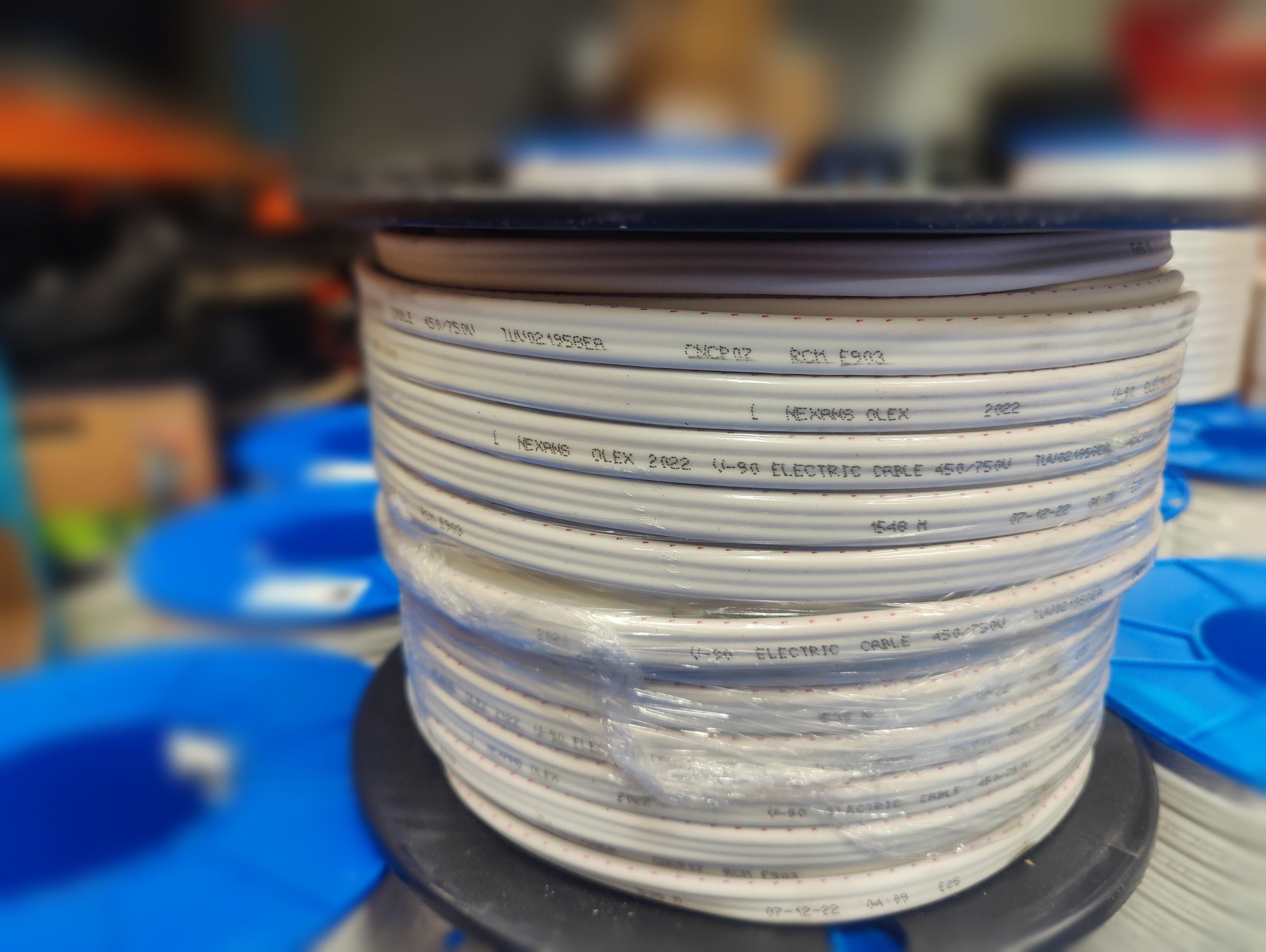

Easy-tear sheath for general wiring, unenclosed, closed in conduit buried direct or in underground ducts for domestic, commercial and industrial installations where not subject to mechanical damage.
CONSTRUCTION CHARACTERISTICS
- Conductor material Copper
- With Green/Yellow core Yes
- Outer sheath PVC
- Type of conductor Stranded copper
- Colour White / Black / Red
- Insulation V-90
DIMENSIONAL CHARACTERISTICS
- Nominal insulation thickness 0.6mm
- Nominal outer sheath thickness 0.9mm
- Number of earth cores 1
- Conductor cross-section 2.5mm²
- Earth conductor cross section 2.5mm²
- Number of cores 2
- Nominal overall diameter 9.9 x 4.5
ELECTRICAL CHARACTERISTICS
- Inductive reactance at 50Hz 0.172Ohm/km
- Max. DC resistance of the conductor at 20°C 13.6Ohm/km
- Insulation resistance at 20°C 14.0MOhm.km
- Conductor AC resistance at 50 Hz 16.5Ohm/km
- Rated Voltage Uo/U (Um) 450 / 750 V
